	GPS, NMEA, WGS-84, GIS and VB.NET By Thomas Tingsted Mathiesen (tma@tma.dk) I made this page because I have almost surfed my self to death trying to piece all the different information together - It's out there, but somewhat scattered all over. My goal is to develop a VB.NET class library where all functionality conserning positioning, Datum conversion, Grid transformation and direct serial interface to an external USB/Serial GPS reciever. My Linked-In profile My company - Gaudio ApS My FaceBook profile
Last changes made: 16 JUL 2008

Index

Coordinate formats

Get the NMEA linies from the GPS reciever

Convert NMEA format to Decimal format

Convert from Decimal format to NMEA/WGS-84

Calculate distance between two coordinates/locations

Calculate direction in degrees between two coordinates

Magnetic deviation/declination

Using maps.google.com to view Longitude/Latitude

Sirf Star III stability test

Links & references

The .NET GPS API ready for download

Go to my GPS API page and check out the features :)

Goto: .NET GPS API

Contribute to the build of a comprehensive list of GPS/NMEA dumps.
See sample data from around the globe using different GPS systems.

Submit serial output, or check out the other dumps

Please give your comment/rating at the bottom of this page

Coordinate formats

NMEA(WGS-84)	5601.0318,N 01211.3503,E
Decimal format	56.01755 12.19302

Get the NMEA linies from the GPS reciever
(Link to all NMEA commands, line descriptions, fields etc. http://www.gpsinformation.org/dale/nmea.htm)
I use the $GPGGA line for getting the current position data.
Example: $GPGGA,165113.000,5601.0318,N,01211.3503,E,1,07,1.2,22.4,M,41.6,M,,0000*60

As you can see my position is:(Denmark)
Longitude: 5601.0318 N
Latitude: 01211.3503 E

Textfile with a NMEA/GPS dump from the terninal (Download)

Convert the recieved NMEA(WGS-84) location to a decimal number.
I had some trouble finding the correct formula for doing this, but I finally found this one, and it works like a charm.
You have to do this conversion, due to the fact that all maps(that I know of) uses decimal longitudes and latitudes.(maps.google.com, Mappoint, Autoroute etc)
If you should make the same mistake as I did, trying to type the location on maps.google.com without this conversion, you will get a position near to you, but not close enough.

Formula (5601.0318) = 56+(1.0318/60)
Example:

    Private Function toDecimal(ByVal Pos As String) As Double
        'Pos="5601.0318"
        Dim PosDb As Double = CType(Replace(Pos, ".", ","), Double) 'Replace . with , (Used in danish doubles)
        Dim Deg As Double = Math.Floor(PosDb / 100)
        Dim DecPos As Double = Math.Round(Deg + ((PosDb - (Deg * 100)) / 60), 5)
        Return DecPos '=56.0172
    End Function

Remember:
If you are located on the Western hemisphere (America/US) or southern hemisphere (Australia), convert to negative position.(Decpos = Decpos * -1)

Thank's to Leonardo for the currect formula.

Convert decimal location to NMEA/WGS-84 format.

Public Enum enumLongLat
    Latitude = 1
    Longitude = 2
End Enum
Public Enum enumReturnformat
    WithSigns = 0
    NMEA = 1
End Enum

Public Function DecimalPosToDegrees(ByVal Decimalpos As Double, ByVal Type As enumLongLat, ByVal Outputformat As enumReturnformat, Optional ByVal SecondResolution As Integer = 2) As String
        Dim Deg As Integer = 0
        Dim Min As Double = 0
        Dim Sec As Double = 0
        Dim Dir As String = ""
        Dim tmpPos As Double = Decimalpos
        If tmpPos < 0 Then tmpPos = Decimalpos * -1 'Always do math on positive values

        Deg = CType(Math.Floor(tmpPos), Integer)
        Min = (tmpPos - Deg) * 60
        Sec = (Min - Math.Floor(Min)) * 60
        Min = Math.Floor(Min)
        Sec = Math.Round(Sec, SecondResolution)

        Select Case Type
            Case enumLongLat.Latitude '=1
                If Decimalpos < 0 Then
                    Dir = "S"
                Else
                    Dir = "N"
                End If
            Case enumLongLat.Longitude '=2
                If Decimalpos < 0 Then
                    Dir = "W"
                Else
                    Dir = "E"
                End If
        End Select
        Select Case Outputformat
            Case enumReturnformat.NMEA
                Return AddZeros(Deg, 3) & AddZeros(Min, 2) & AddZeros(Sec, 2)
            Case enumReturnformat.WithSigns
                Return Deg & "°" & Min & """" & Sec & "'" & Dir
            Case Else
                Return ""
        End Select
    End Function


    Public Function AddZeros(ByVal Value As Double, ByVal Zeros As Integer) As String
        If Math.Floor(Value).ToString.Length < Zeros Then
            Return Value.ToString.PadLeft(Zeros, CType("0", Char))
        Else
            Return Value.ToString
        End If
    End Function

You can get the return value in two different formats.
NMEA = 01211.3487,N
WithSigns = 56°1"3.18'N

Example:

Dim conV As New NMEA_Transform
MsgBox(conV.DecimalPosToDegrees(12.19302, enumLongLat.Latitude, enumReturnformat.NMEA))

Returns: 01211.3487,N

Calculate the distance between two coordinates
I found an article on codeproject.com by Gary Dryden, written in C#.
Remember to convert your position to Decimals first.
I converted it to VB.NET like so:

Imports System
Imports System.Text

Public Class Distance
    Public Function Calc(ByVal Lat1 As Double, ByVal Long1 As Double, ByVal Lat2 As Double, ByVal Long2 As Double) As Double
        Dim dDistance As Double = Double.MinValue
        Dim dLat1InRad As Double = Lat1 * (Math.PI / 180)
        Dim dLong1InRad As Double = Long1 * (Math.PI / 180)
        Dim dLat2InRad As Double = Lat2 * (Math.PI / 180)
        Dim dLong2InRad As Double = Long2 * (Math.PI / 180)
        Dim dLongitude As Double = dLong2InRad - dLong1InRad
        Dim dLatitude As Double = dLat2InRad - dLat1InRad
        Dim a As Double = Math.Pow(Math.Sin(dLatitude / 2), 2) + Math.Cos(dLat1InRad) * Math.Cos(dLat2InRad) * Math.Pow(Math.Sin(dLongitude / 2), 2)
        Dim c As Double = 2 * Math.Atan2(Math.Sqrt(a), Math.Sqrt(1 - a))
        Const kEarthRadiusKms As Double = 6376.5
        dDistance = kEarthRadiusKms * c
        Return dDistance
    End Function
End Class

Returns distance in Kilometers.
Example: MyDistance = Calc(56.0176,12.19302,56.0176,12.19301)

Calculate direction in degrees between two coordinates
This code was by far the hardest to dig up, but thanks to Jim Mischel and his fantastic article on informit.com it came to work.

Public Class Form1
    Structure wptType
        Dim lat As Double
        Dim lon As Double
        Dim ele As Double
    End Structure
    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Dim Distance As Double = 0
        Dim Course As Double = 0
        Dim Source As wptType
        Dim Destination As wptType
        Source.lat = 56
        Source.lon = 12
        Destination.lat = 56
        Destination.lon = 11
        GetCourseAndDistance(Source, Destination, Course, Distance)
        MsgBox(Course)
    End Sub
    Sub GetCourseAndDistance(ByVal pt1 As wptType, ByVal pt2 As wptType, ByRef course As Double, ByRef dist As Double)
        ' convert latitude and longitude to radians
        Dim lat1 As Double = DegreesToRadians(CDbl(pt1.lat))
        Dim lon1 As Double = DegreesToRadians(CDbl(pt1.lon))
        Dim lat2 As Double = DegreesToRadians(CDbl(pt2.lat))
        Dim lon2 As Double = DegreesToRadians(CDbl(pt2.lon))

        ' compute latitude and longitude differences
        Dim dlat As Double = lat2 - lat1
        Dim dlon As Double = lon2 - lon1

        Dim distanceNorth As Double = dlat
        Dim distanceEast As Double = dlon * Math.Cos(lat1)

        ' compute the distance in radians
        dist = Math.Sqrt(distanceNorth * distanceNorth + distanceEast * distanceEast)

        ' and convert the radians to meters
        dist = RadiansToMeters(dist)

        ' add the elevation difference to the calculation
        Dim dele As Double = CDbl(pt2.ele - pt1.ele)
        dist = Math.Sqrt(dist * dist + dele * dele)

        ' compute the course
        course = Math.Atan2(distanceEast, distanceNorth) Mod (2 * Math.PI)
        course = RadiansToDegrees(course)
        If course < 0 Then
            course += 360
        End If
    End Sub
    Function DegreesToRadians(ByVal degrees As Double) As Double
        Return degrees * Math.PI / 180.0
    End Function

    Function RadiansToDegrees(ByVal radians As Double) As Double
        Return radians * 180.0 / Math.PI
    End Function

    Function RadiansToNauticalMiles(ByVal radians As Double) As Double
        ' There are 60 nautical miles for each degree
        Return radians * 60 * 180 / Math.PI
    End Function

    Function RadiansToMeters(ByVal radians As Double) As Double
        ' there are 1852 meters in a nautical mile
        Return 1852 * RadiansToNauticalMiles(radians)
    End Function
End Class

Copy code into a form containing a Button1.
Edit values in Button1_Click:
Source.lat
Source.lon
Destination.lat
Destination.lon

Maps and magnetic deviation/declination
If you need to calculate the magnetic deviation, use this link into NOAA.
NOAA's website (Declination calculator)
Under normal circumstances you will not need to manually do this calculation - your GPS reciever should do this for you.

Using Google maps to position your self with Longitude/Latitude
Pretty simple really, just:
http://maps.google.com?q=56.01717,12.18909

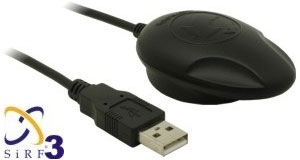

How stable is my GPS reciever with the new SirfStar III chipset
I must admit that this reciever performs beyond what I had expected.

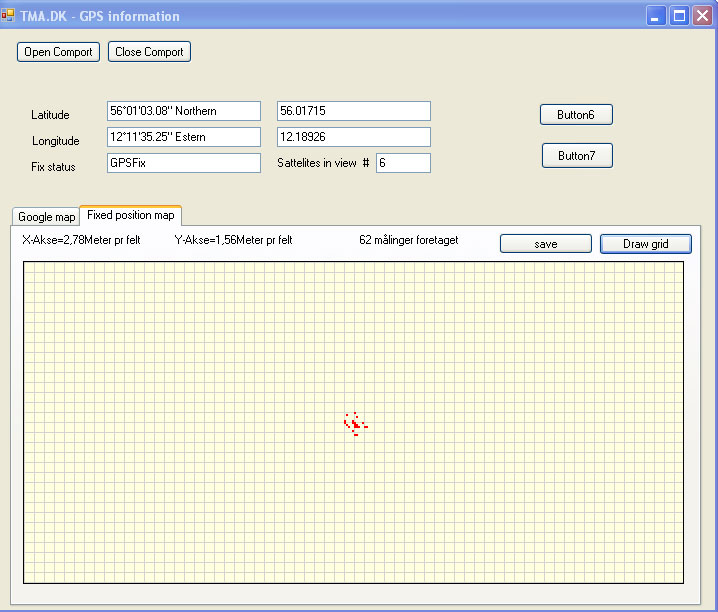

This is a simple graph displaying how the position "jumps" around, when stationary.
(X axis=2,78 Meters pr. square, Y axis=1,56 Meters pr.square, with 62 recieved GPS fixes)

GPS map, stationary, using SirfStar III chipset

GPS map, stationary, using SirfStar III chipset

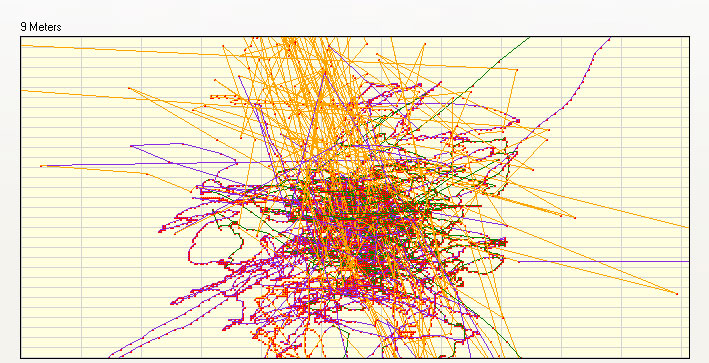

This one is using the old SirfStar II chipset.
GPS map, stationary, using SirfStar II chipset

Links to usefull pages and references

Name	Link
National Geophysical Data Center(NGDC)	http://www.ngdc.noaa.gov/seg/geomag/jsp/struts/calcDeclination
GLOSSARY OF GPS TERMINOLOGY	http://www.rbf.com/cgcc/glossary.htm
Wikipedia's story on Magnetic declination	http://en.wikipedia.org/wiki/Magnetic_variation
NMEA Sentence information	http://www.tma.dk/gps/nmeastrings.htm
Deviation (Graphs)	http://swepos.lmv.lm.se/english/sa.htm
Google groups on the subject	http://groups.google.dk/group/Google-Maps-API/browse_thread/thread/7b36c0f8b6a0d592/ab5580ea1b6adaaf?lnk=st&q=convert+NMEA+to+WGS-84+decimal&rnum=2&hl=da#ab5580ea1b6adaaf
Jim Mischel's fantastic article on 'Computing Track Information in GPS'	http://www.informit.com/guides/content.asp?g=dotnet&seqNum=513&rl=1

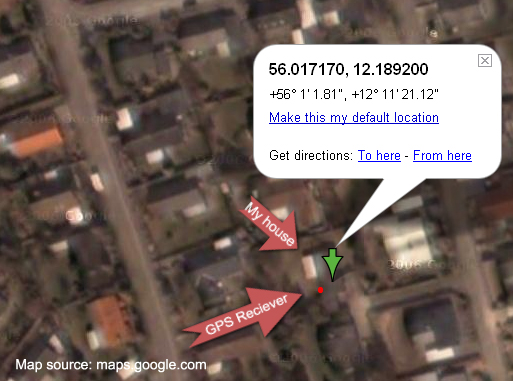

Source:maps.google.com, my location using my GPS reciever
